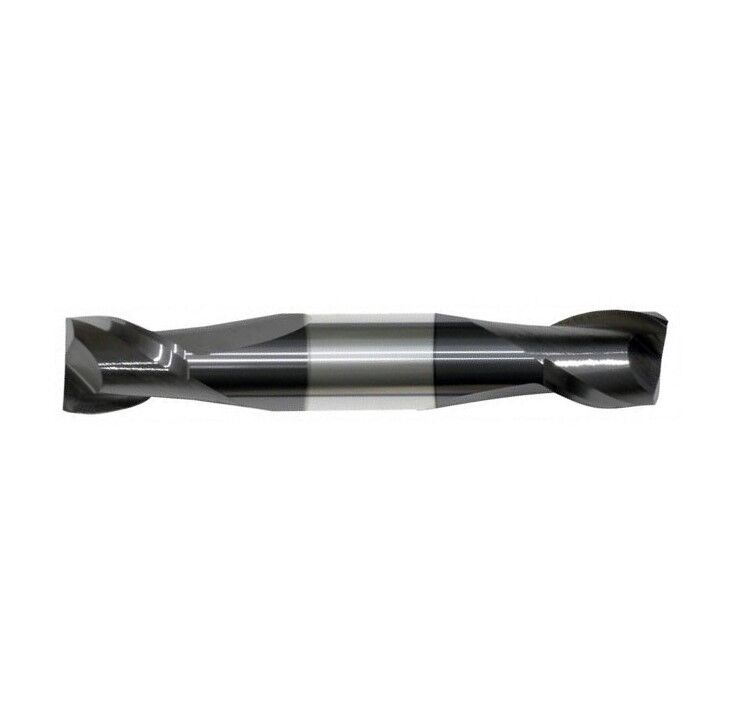

234-001034Item Competidor: MSC
| Mill Diameter (Decimal Inch) | 0.0938 |
| Mill Diameter (Inch) | 3/32 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.1875 |
| Length of Cut (Inch) | 3/16 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 1.5000 |
| Overall Length (Inch) | 1-1/2 |
| Single Or Double End | Double |
| Coating/Finish Family | AlTiN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 30 |
| Primary Workpiece Material | Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coating/Finish | Ti-NAMITE-A |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Micrograin |
| Length Type | Stu |
| Mill Diameter Tolerance | +0.0000/-0.0020 in |
| Shank Diameter Tolerance | -0.0001/-0.0004 in |
| Series | 15 |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
