| Mill Diameter (Inch) |
1/2 |
| Mill Diameter (Decimal Inch) |
0.5000 |
| Number Of Flutes |
5 |
| Length of Cut (Inch) |
1/2 |
| Single Or Double End |
Single |
| End Mill Material |
Solid Carbide |
| Coating/Finish |
AlTiN |
| Overall Length (Inch) |
4 |
| Centercutting |
Yes |
| Flute Direction |
Right Hand |
| Corner Radius (Decimal Inch) |
0.0900 |
| Variable Helix |
No |
| Cutting Direction |
Right Hand |
| Overall Length (Decimal Inch) |
4.0000 |
| End Type |
Corner Radius |
| Length Of Cut (Decimal Inch – 4 Decimals) |
.5 |
| Length Type |
Long |
| Flute Type |
Spiral |
| Extended Reach |
No |
| Shank Diameter (Inch) |
1/2 |
| Mill Diameter Tolerance |
+0.000000/-0.002000 in |
| Shank Diameter Tolerance |
+0.0001/-0. 0004 in |
| UNSPSC Code |
27112803 |
| Material Grade |
Micrograin |
| TIR Maximum (Decimal Inch) |
0.0005 |
316901 G8141798 73748055 67807636 33972464 537-L-5000-090- 7008692 6168956

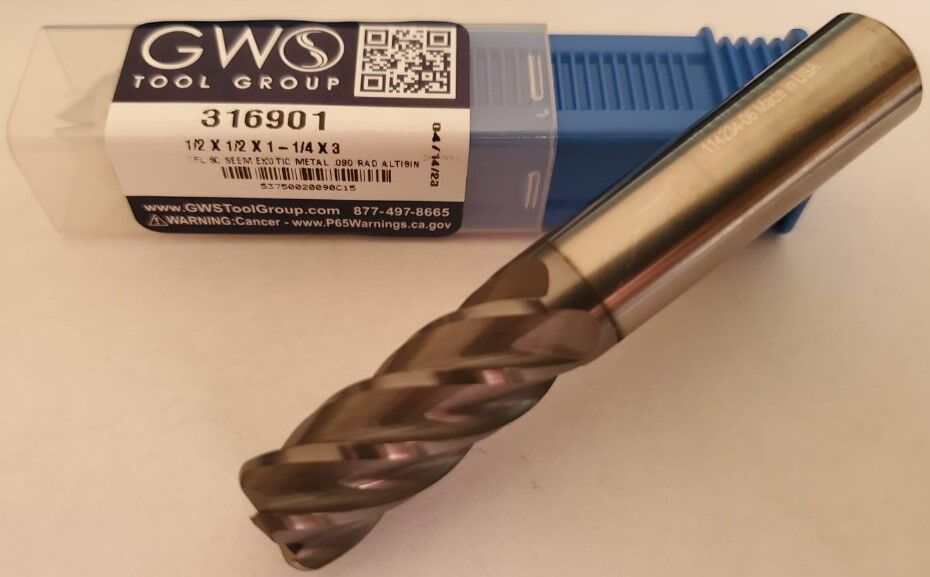

316901
