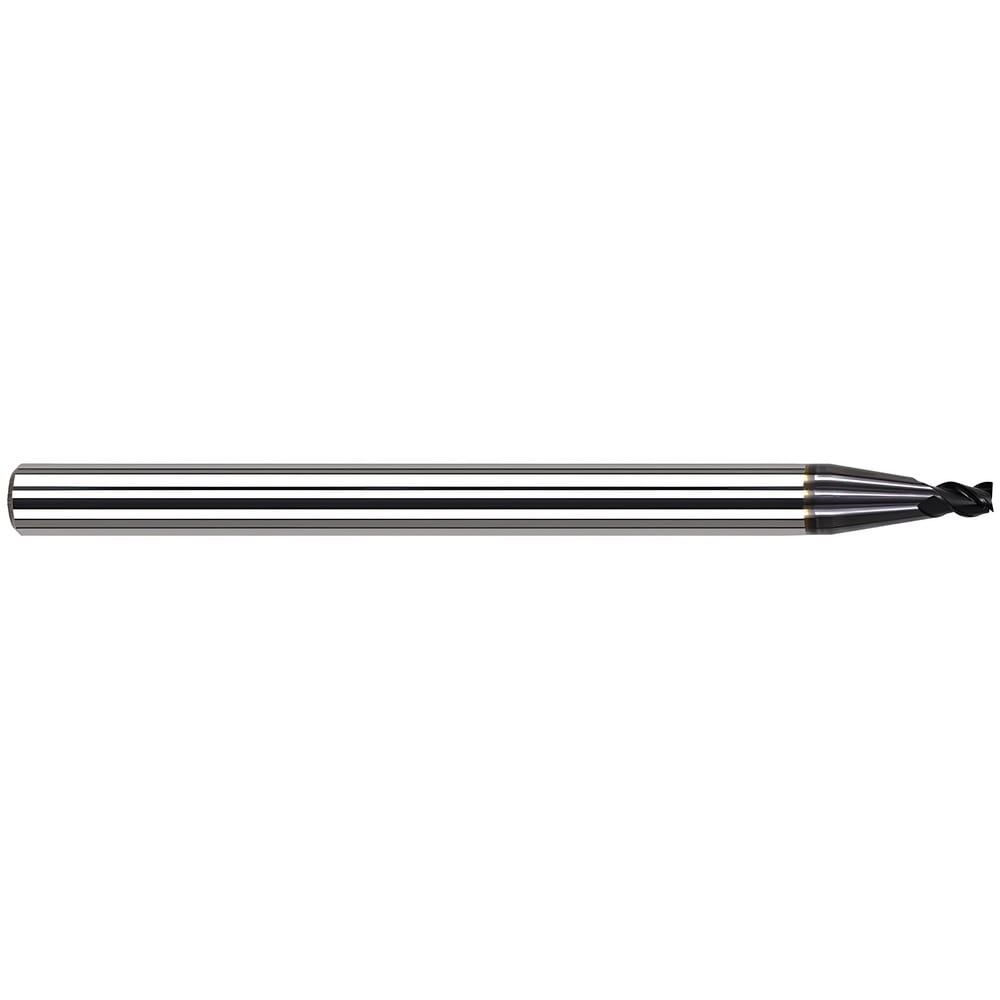

984133-C6| Item MFG | HARVEY |
| Item Comparativo | MSC |
| Mill Diameter (Decimal Inch) | 0.0591 |
| Mill Diameter (mm) | 1.50 |
| Number Of Flutes | 3 |
| Length of Cut (mm) | 2.20 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Variable Index | No |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.20 |
| Overall Length (mm) | 50.00 |
| Coolant Through | No |
| Pitch | Normal |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch – 4 Decimals) | 0.0866 |
| Length Type | Short |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (mm) | 4.00 |
| Corner Radius Tolerance | 0.025 to -0.025 mm |
| Mill Diameter Tolerance | 0.00/-0.02 mm |
| Shank Diameter Tolerance | h6 |
| Overall Length Tolerance | 0.25/-0.00 mm |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K; M |
| UNSPSC Code | 27112803 |
| Series | Material Specific End Mills; Variable Helix End Mills for High Temp Alloys – Corner Radius |
| Material Application | Stainless Steel; Cast Iron; Hard Alloy; Steel |
| Coating Classification | PVD |
| For Use With. | High Precision Toolholders |
