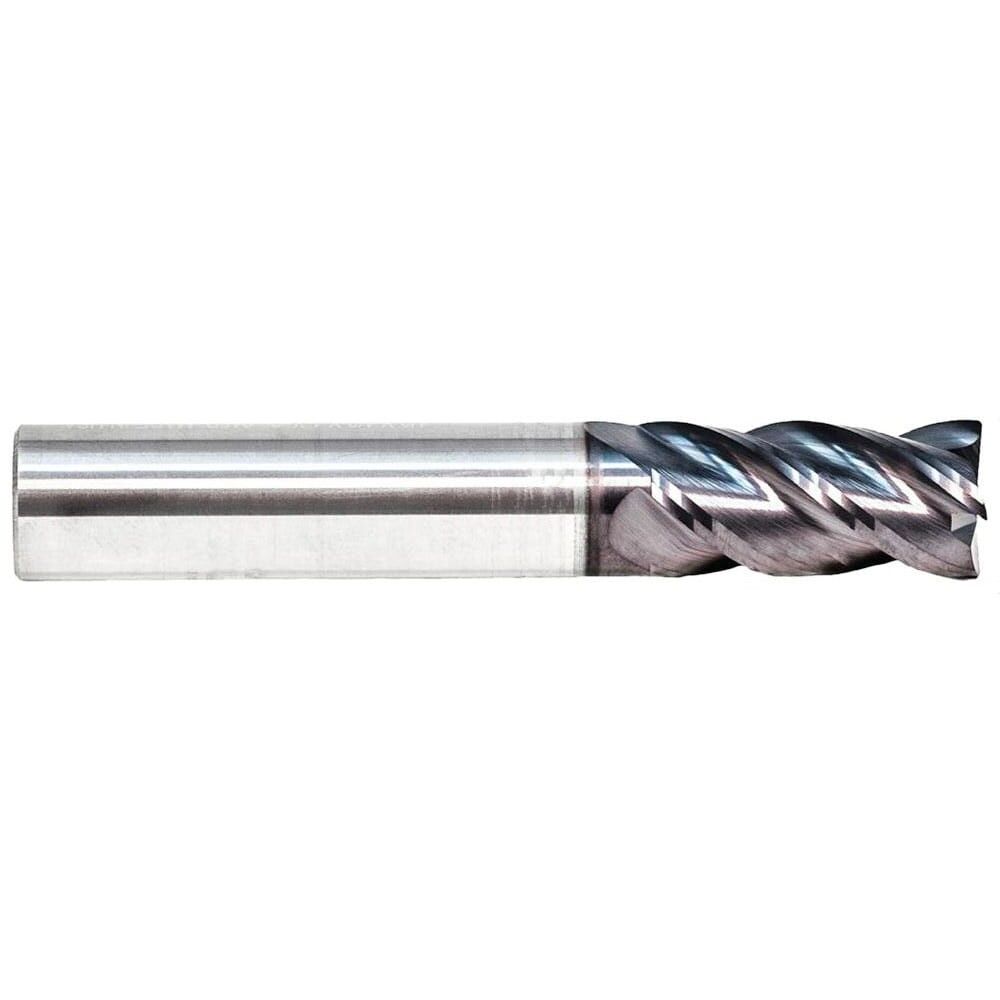

Name: Cortado 1/2´´, Con Radio .02´´, LOC=5/8, OAL=3, S. Carbide , GWS ALCRO–MAX
SKU: 316647
Price: 1100.00 MXN
Availability: InStock

Item Comparativo

Item Comparativo

Mill Diameter (Inch)	1/2
Mill Diameter (Decimal Inch)	0.5000
Number Of Flutes	4
Length of Cut (Inch)	1
Single Or Double End	Single
End Mill Material	Solid Carbide
Coating/Finish	ALCRO–MAX
Overall Length (Inch)	3
Centercutting	Yes
Flute Direction	Right Hand
Corner Radius (Decimal Inch)	0.0200
Variable Index	No
Cutting Direction	Right Hand
Overall Length (Decimal Inch)	3.0000
End Type	Corner Radius
Length Of Cut (Decimal Inch – 4 Decimals)	1.0000
Flute Type	Spiral
Extended Reach	No
Shank Diameter (Inch)	1/2
Corner Radius Tolerance	±0.00150 in
Mill Diameter Tolerance	+0.000000/-0.002500 in
Shank Diameter Tolerance	-0.0001/-0.0004 in
UNSPSC Code	27112803
Material Grade	Micrograin

316647 87658910 86800232 437S5000-020C11 12182608
