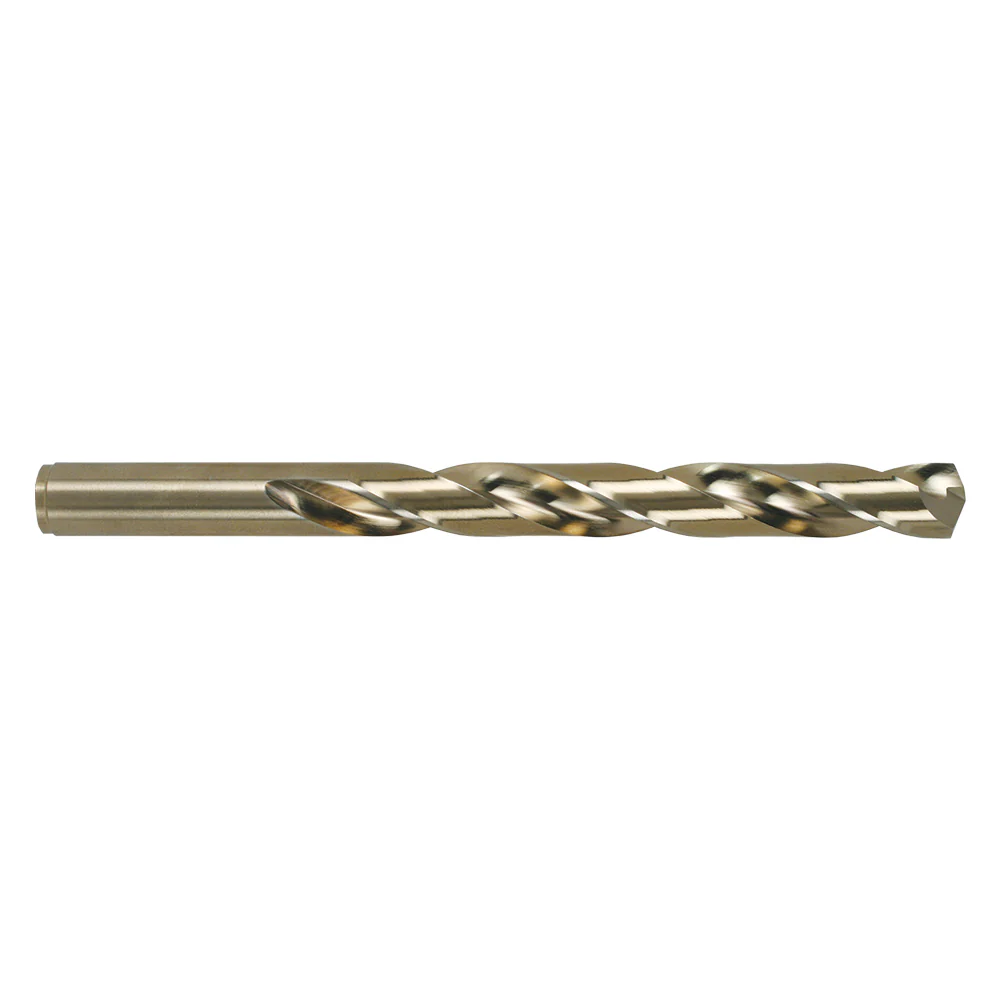

Drill Bit Size (Wire) | #25 |
Drill Bit Size (Decimal Inch) | 0.1495 |
Drill Bit Material | Cobalt |
Drill Point Angle (Degrees) | 135 |
Coating/Finish | Bright/Uncoated |
Flute Type | Regular Spiral |
Cutting Direction | Right Hand |
Point Type | Split Point |
Primary Workpiece Material | Steel Alloy |
Coolant Through | No |
Number of Flutes | 2 |
Flute Length (Inch) | 1-7/8 |
Shank Diameter (Decimal Inch) | 0.1495 |
Overall Length (mm) | 76.20 |
Overall Length (Inch) | 3 |
Overall Length (Decimal Inch) | 3.0000 |
Spiral Type | Regular |
Flute Length (mm) | 47.63 |
Flute Length (Decimal Inch) | 1.8750 |
Series | JC514 |
Drill Bit Diameter Tolerance | +0.0000 to -0.0007 in |
Web Thinning | Web-Thinned |
Web Configuration | Tapered |
Shank Type | Straight |
Tool Performance | High Performance |
Drill Bit Grade | Heavy Duty |
Drill Bit Size Range (Decimal Inch) | 0.1000 – 0.1500 |
UNSPSC Code | 23241634 |
